scm: show added and removed line counts in the Source Control view by thexin7 · Pull Request #329140 · microsoft/vscode

thexin7 · 2026-08-05T09:41:05Z

Shows how many lines each change adds and removes in the Source Control view — next to every resource, and aggregated on the resource group header.

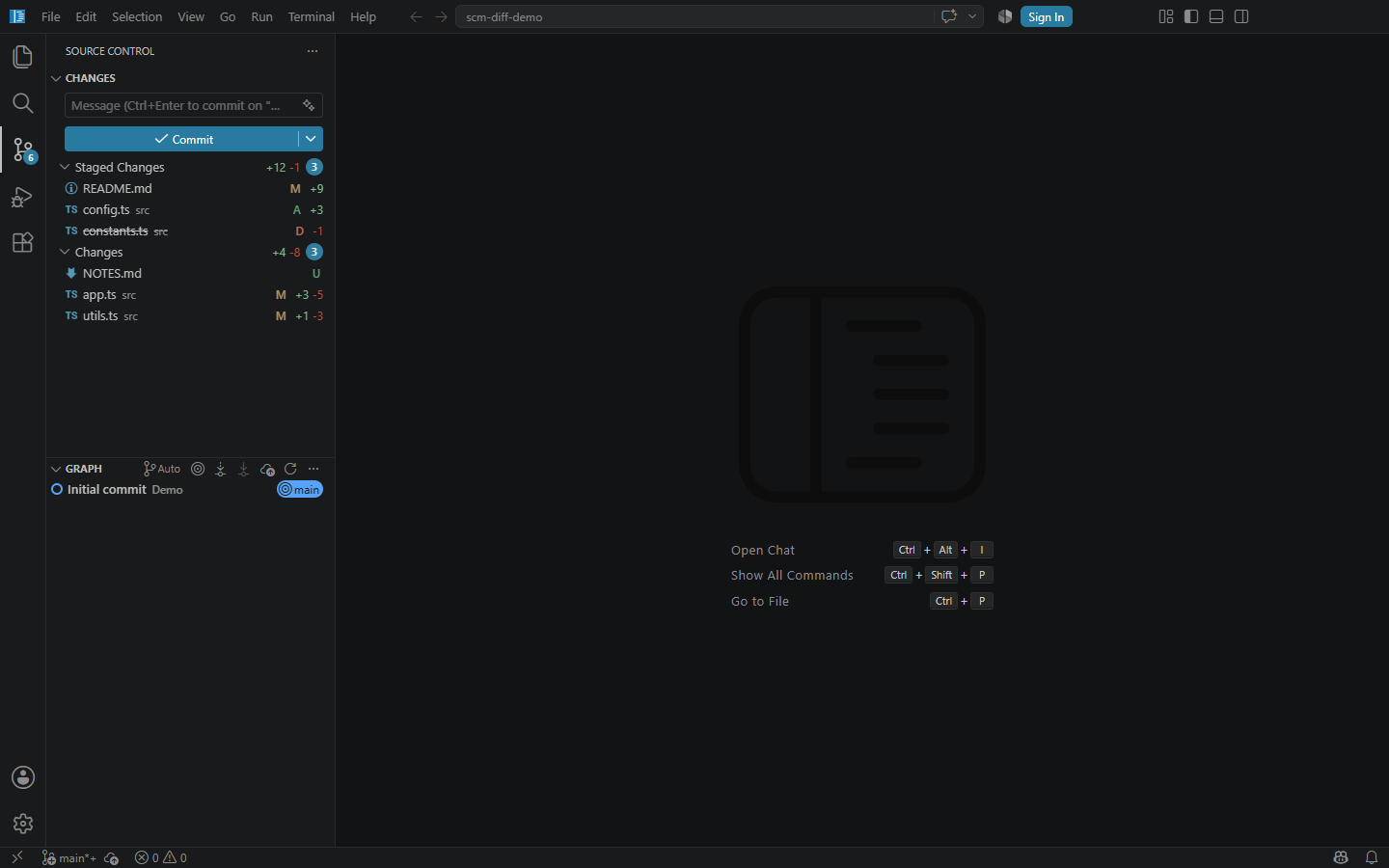

Full window

How it works

Layer	Change
API	Proposed `SourceControlResourceState.diffStatistics` (`scmDiffStatistics`)
Git extension	One `git diff --raw --numstat` per group (index + working tree), off switch via `git.diffStatistics`
Source Control view	Renders `+N` / `-M` per resource and per group, with dedicated theme colors

The counts reuse the existing scmGraph.historyItemHover*Foreground ramp through two new colors, scm.diffStatisticsInsertionsForeground and scm.diffStatisticsDeletionsForeground, so the graph and the resource list stay on one palette.

Scope

Deliberately not covered, to keep the change small:

Untracked files — git reports no statistics for them, and counting their lines from disk means reading arbitrary working-tree content on every status update. Left for a follow-up.
Unmerged paths — git reports no line statistics for them either.
Copies and type changes — excluded by --diff-filter=ADMR; the shared --raw parser does not model them today.

Cost control: the two diff commands only run when git.diffStatistics is enabled, and are skipped entirely for repositories that hit git.statusLimit.

Verifying

Run Code - OSS from this branch and open a repository with staged and unstaged changes.
Confirm each file shows green +N / red -M, and that each group header shows the sum.
Compare against git diff --numstat and git diff --cached --numstat.
Set "git.diffStatistics": false and confirm the counts disappear without a reload.

Screen reader labels read as README.md, Index Modified, 9 insertions, src — the visual counts are aria-hidden so they are not announced twice.

thexin7 · 2026-08-05T09:41:34Z

@microsoft-github-policy-service agree

vs-code-engineering · 2026-08-05T09:42:04Z

📬 CODENOTIFY

The following users are being notified based on files changed in this PR:

@lszomoru

Matched files:

extensions/git/package.json
extensions/git/package.nls.json
extensions/git/src/git.ts
extensions/git/src/repository.ts
extensions/git/src/test/diffStatistics.test.ts
extensions/git/tsconfig.json
src/vs/workbench/contrib/scm/browser/media/scm.css
src/vs/workbench/contrib/scm/browser/scmViewPane.ts
src/vs/workbench/contrib/scm/common/scm.ts

Copilot

Pull request overview

Adds per-resource and per-group line-change statistics to Source Control, backed by a proposed SCM API and Git integration.

Changes:

Adds proposed diff-statistics API plumbing.
Renders configurable, themed, accessible +/- counts.
Computes Git statistics with tests for untracked-file line counting.

Reviewed changes

Copilot reviewed 14 out of 15 changed files in this pull request and generated 5 comments.

Show a summary per file

File	Description
`src/vscode-dts/vscode.proposed.scmDiffStatistics.d.ts`	Defines the proposed API.
`src/vs/workbench/contrib/scm/common/scm.ts`	Adds internal statistics types.
`src/vs/workbench/contrib/scm/browser/scmViewPane.ts`	Renders and announces statistics.
`src/vs/workbench/contrib/scm/browser/scm.contribution.ts`	Registers the visibility setting.
`src/vs/workbench/contrib/scm/browser/media/scm.css`	Styles statistics.
`src/vs/workbench/api/common/extHostSCM.ts`	Serializes extension-provided statistics.
`src/vs/workbench/api/common/extHost.protocol.ts`	Extends the SCM protocol tuple.
`src/vs/workbench/api/browser/mainThreadSCM.ts`	Deserializes statistics.
`src/vs/platform/extensions/common/extensionsApiProposals.ts`	Registers the API proposal.
`extensions/git/tsconfig.json`	Includes the proposal declaration.
`extensions/git/src/test/diffStatistics.test.ts`	Tests file-line counting.
`extensions/git/src/repository.ts`	Computes and attaches statistics.
`extensions/git/src/git.ts`	Runs and parses Git diff statistics.
`extensions/git/package.json`	Enables the proposal for Git.
`build/lib/stylelint/vscode-known-variables.json`	Allows the new theme variables.

+/**
+ * Untracked files are not reported by `git diff`, so their line count is read from
+ * disk. Files larger than this are skipped to bound the amount of I/O per status
+ * update.
+ */
+const DIFF_STATISTICS_MAX_FILE_SIZE = 1024 * 1024;


 			return undefined;
 		});

+		await this.applyDiffStatistics(indexGroup, workingTreeGroup, untrackedGroup, similarityThreshold, cancellationToken);


+ * resources, while the group header is re-rendered on every scroll. Cache the result
+ * keyed on the resources array, which is replaced whenever the group changes.
+ */
+const resourceGroupDiffStatistics = new WeakMap<readonly ISCMResource[], ISCMResourceDiffStatistics | null>();


 	}

+	private async diffFilesWithStats(ref: string | undefined, options: { cached: boolean; similarityThreshold?: number }): Promise<DiffChange[]> {
+		const args = ['diff', '--raw', '--numstat', '--diff-filter=ADMR', '-z'];


+		await fs.rm(tempDir, { recursive: true, force: true });
+	});
+
+	test('countFileLines', async () => {


Adds a proposed `SourceControlResourceState.diffStatistics` API and renders the reported insertions/deletions next to each resource, as well as the aggregate of a resource group on its header. The git extension fills the statistics in from `git diff --raw --numstat` for the index and the working tree. It skips repositories that hit the status limit, and can be turned off entirely with `git.diffStatistics`.

thexin7 · 2026-08-05T10:36:15Z

Force-pushed a rewrite that squashes this down to a single commit and cuts the diff from +490 to +327. The inline review comments above are now outdated, so here is how each one was handled:

Review point	Resolution
The 1 MiB per-file cap does not bound I/O per status update	Dropped the untracked-file fallback entirely. Nothing is read from disk anymore, so there is no I/O budget to get wrong. Untracked files simply show no counts.
Statistics are computed even when the feature is off	The setting moved from `scm.diffStatistics` to `git.diffStatistics`, i.e. next to the code that spends the git commands. When it is off, no diff runs at all. It is wired into the existing config listener, so toggling it refreshes the status.
The group aggregate cache never invalidates	Correct, and thanks — `MainThreadSCMResourceGroup.resources` is allocated once and mutated via `splice`, so keying a `WeakMap` on it was wrong. Removed the cache; the aggregate is now computed during render.
`--diff-filter=ADMR` drops `C` and `T`	Kept the filter and documented it as out of scope. `parseGitChangesRaw` aborts on statuses it does not model, so widening the filter without extending that shared parser would break the three existing callers.
Tests only cover the untracked fallback	That code is gone. The test now covers `toDiffStatisticsMap`, including rename mapping and the case where a rename's original path collides with another change.

Two things I did not take:

Type ramp for the counts. label1 does not exist in this repo. font-size: 0.9em is what iconlabel.css already uses for the description text in the same row, so the counts sit on the ramp that is actually there.
Extra sort key on compareResourceStates. Removed instead. Ordering files by change size would make rows move around as you type, and it was unreachable anyway.

Also fixed while verifying: the accessible label said 1 deletions and padded zeros (9 insertions, 0 deletions). It now reads README.md, Index Modified, 9 insertions, src.

Verified against a repository with staged, unstaged, deleted, added and untracked files — the rendered counts match git diff --numstat and git diff --cached --numstat exactly. Screenshot in the description.

Copilot AI balanced review requested due to automatic review settings August 5, 2026 09:41

thexin7 force-pushed the feature/scm-diff-line-stats branch from b4165fc to 2da20e0 Compare August 5, 2026 09:41

Copilot started reviewing on behalf of thexin7 August 5, 2026 09:42 View session

Copilot AI reviewed Aug 5, 2026

View reviewed changes

thexin7 force-pushed the feature/scm-diff-line-stats branch from 2da20e0 to 4586fe0 Compare August 5, 2026 10:35

thexin7 changed the title ~~feat(scm): show added/removed line counts in Source Control~~ scm: show added and removed line counts in the Source Control view Aug 5, 2026

vs-code-engineering Bot assigned lszomoru Aug 5, 2026

Merge branch 'main' into feature/scm-diff-line-stats

5bb7a57
